Torpedo Nozzles TP Series

TP series torpedo nozzles features a large diameter straight injection channel, that enable really low pressure losses and easy colour and material shifts. These nozzles are expressly engineered to be general purpose and can be housed in a fast and easy way. Moreover, the easily interchangeable and replaceable cartridge heaters avoid complex and expensive maintenance. To compensate the distance between manifold and nozzle is available a series of heated estensions.

Cross Section Drawing

Sizes and Flow Rate diagram

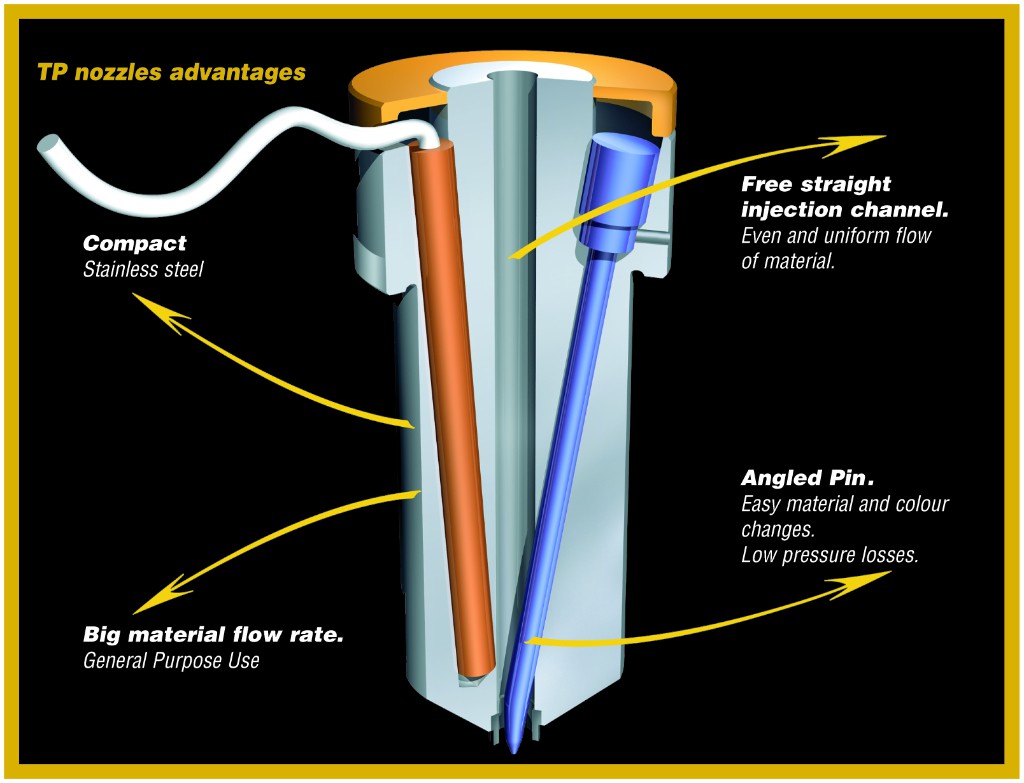

Main Features

  • The straight and free channel allows to fill up even complex mould cavities with balanced and uniform flows of material, concurring to obtain products with smaller inner tensions and top quality.
  • The angled pin allows an easy colour and material change and extremely low pressure losses
  • The great material flow capacity makes them general purpose and allows extremely small injection points.
  • The heating through inner cartridges allows a really high thermal efficiency with a great advantage on the duration of the heaters

Download Catalogo

Cat-tpTP series general catalog. Sizes and housing drawings

Download Brochure

brochure-tpTP Series Brochure. Cross section drawing, sizes and flow rate diagram.
